Description

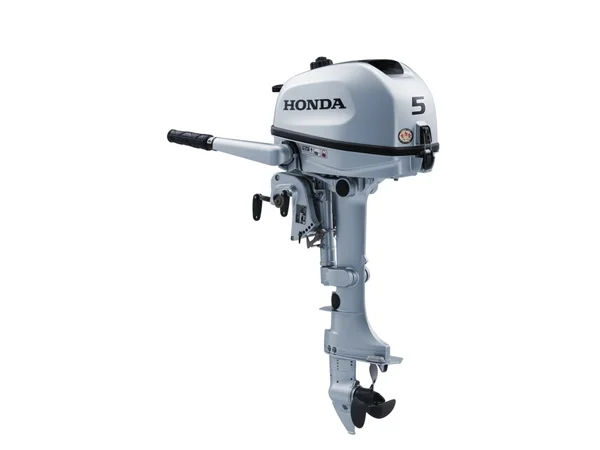

2017 HONDA 5 HP BF5DHLHNA Outboard Motor
The new Honda 5 HP outboard motor offers quiet, low vibration performance, ideal for small tenders, canoes, jon boats, and inflatables. This lightweight, easy-to-operate motor with decompression easy starting boasts a large capacity 1.5L internal fuel tank with an external connector that out runs its competitors. This best-in-class 5 HP motor is available in long or short shaft models. Plus, you’ll get the best 5-year factory warranty in the business. You’ve found a winner with the new Honda award winning 5 HP portable outboard.
2017 HONDA 5 HP BF5DHLHNA Outboard Motor
- Reliable, efficient 4-stroke design
- Lightweight and Compact
- Convenient Fold-Down Tiller Handle
- Large Displacement Engine for more power
- Twist grip throttle – more comfortable to use
- True 5 Warranty – unmatched peace of mind
- 4-Front Corrosion Protection System – Fights the elements
- Digital CD Ignition – easy starting
- Low Oil Warning and RPM Reduction Alerts
- Easy to carry and install
- New Isolation Mounts – Reduced Vibration for Comfort and Durability
- Shallow Water Drive
- F-N-R Gearshift
- Wet Sump Lubrication – better durability
- Ultra Low 3 Star CARB Emissions
- Optional 6 amp charging system
- Decompression Mechanism for easy starts
- Easy One-Push and Release Stop Button
- 1.5L internal tank (only) and external connector
2017 HONDA 5 HP BF5DHLHNA Outboard Motor
| Model | BF5DHLHNA |
| Model Year | 2017 |
| SKU | BF5DHLHNA-17 |
| Weight | 60.6000 |
| Manufacturer | Honda |
| Country of Manufacture | China |
| Horsepower | 5hp |
| Shaft Length | 20″ (Long) |
| Steering | Tiller |
| Starting | Manual |
| Trim & Tilt | Manual |
| Fuel Delivery | Carburetor |
| Fuel Tank | External |
| Cylinder(s) | 1 |
| Displacement | 127 cc (7.8 cubic inches) |
| Bore and Stroke | 60 x 45 mm (2.4 x 1.8 in.) |
| Full Throttle RPM Range | 5000-6000 RPM |
| Ignition System | Digital CDI |
| Induction Scavenging | OHV |
| Valves per Cylinder | 2 |
| Fuel Type | Unleaded Gasoline (87 octane) |
| Fuel Tank / Fuel Line | Internal (1.5 L) with external connector |
| Oil Type | FC-W 10W-30 |
| Oil Capacity | Please inquire. |
| Lubrication | Wet Sump |
| Alternator | OPTIONAL 6 amp (installation required) |
| Cooling System | Water Cooled |
| Saltwater Rated | YES |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Propeller | 7-7/8″ Dia. x 7-1/2″ Pitch 3-Blade Aluminum |
| Internal Battery | No |
2017 HONDA 5 HP BF5DHLHNA Outboard Motor
What’s in the box?
- Aluminum Propeller
- Owner’s Manual & Tool Kit
- True 5-Year Warranty
