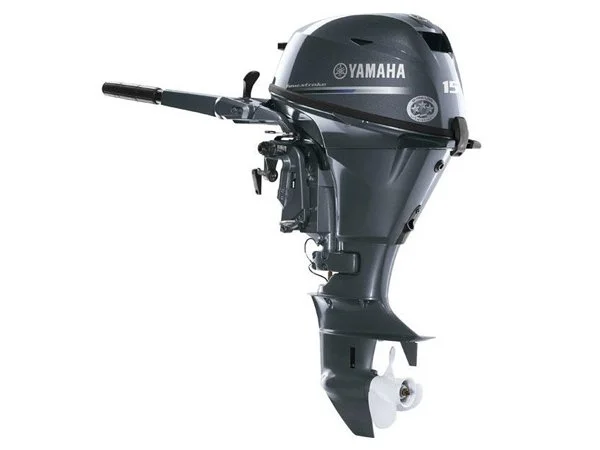

2017 Yamaha F15 LMHA Outboard Motor

Description

? 2017 Yamaha F15 LMHA Outboard Motor

For those who want power, performance and portability

The sun just broke the horizon, but your day began hours ago—the second you started your trusty Yamaha Portable. Maybe you’re skimming the marsh in a jon boat during duck season, pushing a sailboat ‘til the wind kicks up or hopping to the cuddy on a tender. Wherever the day takes you, these nimble, lightweight, efficient portables are up for the ride. Available in a range of horsepower from the F20, to the F2.5, including the redesigned F8 with 7.5 percent more displacement, these 1- or 2-cylinder dynamos provide big performance in streamlined designs.

2017 Yamaha F15 LMHA Outboard Motor

• SOHC

• Large Displacement Engine

• Streamlined Intake Manifold

• Large Volume Air Silencer

• Labyrinth Exhaust

• Water-Cooled Fuel Pump

• Acceleration Pump

• Long Span Mounting System

• Four Stroke Engine Design

2017 Yamaha F15 LMHA Outboard Motor

Year 2017

Manufacturer Yamaha Marine

Model Name F15

Trim Name LMHA

Generic Type (Primary) Four Stroke

Engine

Engine Type 2 Cylinder

Engine Power 15 hp @ 5500 rpm

Alternator (Output): 10A **

Displacement 22.1 ci (362 cc)

Gear Ratio (Primary) (27:13) 2.08:1

Lubrication Wet sump

Fuel Type Induction: SOHC

Ignition System: CDI Micro Computer

Oil Type (Recommended): Yamalube® 4M (See owner’s manual)

Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 87)

Fuel Type (Recommended Filtration): Yamaha Mini 10-Micron Fuel/Water Separating Filter (external)

Spark Plug

Spark Plug DPR6EB-900-000

Range

Note Full Throttle RPM Range: 5000-6000

Dimensions

Length Shaft: L=20″

Bore 2.48 in. (63 mm)

Stroke 2.29 in. (58.1 mm)

Weights

Dry Weight F15LMHA = 52kg (115 lbs)

Capacities

Oil capacity 1.8L/1.6L w/without filter

Features

Compression Ratio 9.3:1

Features Degree of Tilt: 67°-71° | Degree of Trim: 4 positions

Exhaust Through Propeller

Weight Spec: 2

Note Ethanol Blend Limit: 10% Maximum

Note Gear Shift: Forward, Neutral, Reverse

Features C.A.R.B. Rating: 3 Star

Steering Angle (Maximun): 45° from center, either direction

Cooling Water/Thermostatic Control

Note Mounting Centers: 28.6″

Intake Design Carburetor

Starter Manual or Electric

Warranty

Warranty 3 Year Limited Pleasure Boat – 1 Year Limited Commercial
